Steady leg Al-Ko ClickFix 460 - 710

Description

Required frame height:

• Min. A: 460 mm
• Max. B: 710 mm

Height of steady legs:

• Max. C: 446 mm
• Max. D: 744 mm

Steady leg dimension:

• E: 155 mm
• FB: 469 m
• F: 531 mm

Mounting height:

• G: 40 mm
• H: 41.5 mm
• I: 45 mm

Drive shaft length:

• M: 200 mm

The steady legs are simply cranked up or down with a crank, allowing your vehicle to stand securely on grass, gravel or asphalt. The mechanical AL-KO ClickFix steady legs can easily be mounted on vehicles with AL-KO chassis or chassis extensions (from 08/95). In older vehicles, the holes must be drilled by the owner.

Safety:
Additional safety is provided by a free-pivoting mechanism that ensures that the steady legs automatically pivot forwards or backwards when extended. This prevents damage to the vehicle.

Material:
Hot-dip galvanised inner tube, aluminium outer tube

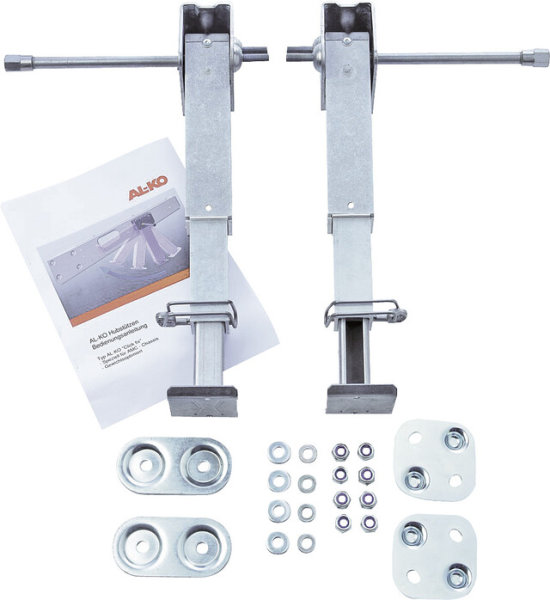

Contents:
2 steady legs
Mounting material
Assembly/operating instructions
Crank not included (please order separately)
