Solar powered system Büttner MT Power Pack Classic I with 110 W , BCB 25 / 20 MT 01265

Description

The Power Pack Classic can easily be installed parallel to the existing basic electronics in any touring vehicle. The combination device BCB 25/20
ensures that an additional charging current of 20 A is available when connected to the mains (230 V). While driving, the BCB works in booster mode.
It switches itself on when required, requests 25 A charging current, regulates to the required charging voltage (battery type can be set) and charges with an optimum
characteristics of the on-board battery(ies). It also guarantees a constant charging current for "Euro 5" and "Euro 6" vehicles that are equipped with an alternator cut-off. The BCB 25/20 has the most modern characteristics (IUoU) to optimally charge wet, gel, LiFePO4 and AGM batteries according to the battery temperature (sensor included).
The battery computer MT 5000iQ controls and monitors the system. At the push of a button, the remaining capacity or the remaining time is displayed, for example. The solar system is also perfectly integrated into the system. The Power Packs are equipped with 110 Wp - 72 cell MT Black Line modules. Specially developed for touring vehicles and optimally matched to the complete set, they guarantee optimal charging performance even in adverse weather conditions.
The Power Pack Classic I is equipped with a solar module MT 110 MC (110 Wp). Optimal charging in the classic travel season between spring and autumn for small to medium-sized touring vehicles. The Power Pack Classic II provides more solar power and is equipped with two solar modules, each with 110 Wp, so that larger motorhomes or vehicles with more consumers on board can also be supplied independently.

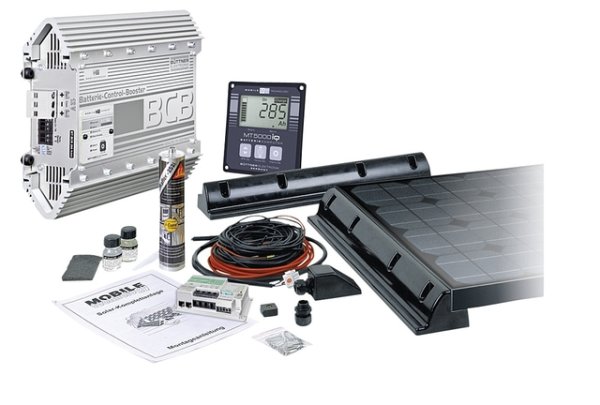

Contents:
Charging booster MT BCB 25/20
Battery computer MT 5000iQ
Solar module MT 110 MC
Solar mounting material
Cable set BCB
High-load relay 12 V/80 A
Cable connector
Base
