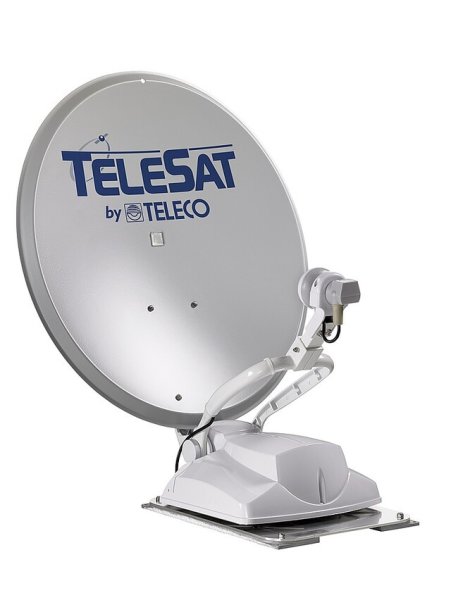

Sat. system automatic TELECO Telesat BT 65

Description

Automatic HD satellite system with 16 saved satellites

Equipped with a DVB-S2 control unit with an OLED graphic display and two buttons to start a satellite search or lower the dish. Can also be controlled via Bluetooth using the TELECO app on your smartphone. The control unit is also equipped with a CI-BUS connection. As soon as they are made available on the TELECO app, all software updates can be loaded directly from the user's smartphone via Bluetooth. The Flatsat Classic BT is compatible with all television sets with DVB-S2 tuners and with all SAT receivers. A safety system that automatically closes the antenna when the vehicle engine is started is also available.

Properties and functions:

• Anti-twist carrying arm with aerodynamic profile

• Special aluminium injection moulding DIE-CASTING (lighter and stiffer) with epoxy paint to protect against corrosion

• Steel and bronze gears

• Motorised system with gears made of steel and bronze for a perfect and always stable positioning of the satellite

• Integrated safety systems. Automatic lowering of the antenna when starting the vehicle engine

  Antenna:


  • Dimensions of parabolic mirror: 63.5 x 59 cm

  • Dimensions when closed: 73 x 19 cm (W x H)

  • Weight: 9 kg

  There are five different ways to control the antenna:


  • Pressing a button on the control unit

  • With a smartphone via the (free) TELECO app via Bluetooth

  • With the new mini control panel with display

  • Via the CI-BUS control panel (not included)

  • If the antenna is connected to a Teleco Mod TEK TV, it can be operated directly with the TV remote control (mod. and Elegance models) can be controlled

  Control unit DVB-S2 HD:


  • Supply voltage: 12/24 V DC (10–31 V DC)

  • max. Consumption: 3.2 A

  • Dimensions: 160 x 115 x 25 mm

  • Weight: 250 g

  Teleco app
  The Teleco app is available free of charge for both iOS and Android. Selecting the Automatic Antenna icon gives access to the special menu with all the information that will make it easier to use the antenna: Compass indicating the direction of origin of the signals from the selected satellite (to avoid parking the vehicle near obstacles), LNB skew angle to optimise the reception signal in the place where the vehicle is parked.
  If a firmware update is available, the user will receive it directly on the app and can automatically transfer it to the antenna via Bluetooth using a simple process and their own smartphone.

  Contents:
  1 external satellite antenna
  1 DVB-S2 control unit complete with cables
  1 control panel
