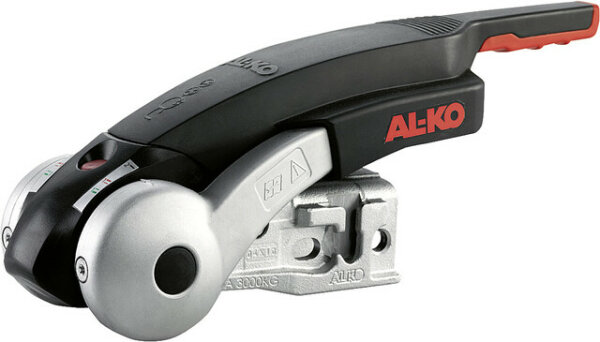

Safety coupling Al-Ko AKS 3004 horizontal / crossed black handle

Description

Your benefit

Movements:
Any rolling or pitching movements of the caravan are effectively suppressed.

Quiet ride:
Relaxed and relaxed driving with the vehicle combination increases safety.

Emergency situations:
In an emergency situation, the AKS 3504 can be used to stabilise the vehicle combination more quickly. In addition, the stabiliser coupling allows a higher theoretical maximum speed (please observe the maximum speed limit). The AKS 3004 complies with ISO 11555-1 (100 km/h approval possible).

How it works:
When the stabilising handle is actuated, four special friction pads are pressed onto the car’s trailer hitch from the left, right, rear and front. The braking torque of the pads can be max. 320 Nm. Weaving or jerking movements are thus effectively suppressed right from the start.

Operation:
The AKS 3004’s coupling and stabilisation handle are separate from each other and can be operated with one hand. No complicated additional securing devices. The stabilising handle is simply opened to make manoeuvring the caravan easier.

• Nose weight: 150 kg
• Holes: horizontal (for AL-KO overrun devices)
• Connection A Ø (mm): 35+50
• Connection B Ø (mm): 50+54
• Connection C Ø (mm): 11
• Length D (mm): 168
• Holes: cross (for other overrun devices)
• Connection A Ø (mm): 45+50
• Connection B Ø (mm): 40
• Connection C Ø (mm): 18
• Length D (mm): 168
