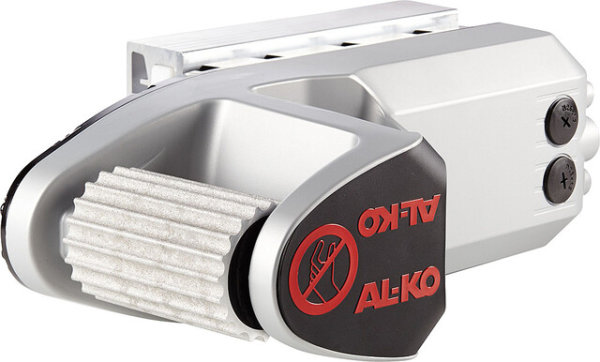

Manoeuvring system Al-Ko Mammut S22 single axle vers.

Description

• Type: Single-axis variant S22
• Height a = 125–184 mm, height b = 125–184 mm
• Convenience: easy, jolt-free manoeuvring thanks to the joystick, soft start and soft stop technology
• Immediate stop on inclines: release the joystick and the caravan immediately comes to a braked stop.
• Power: Turn on the spot Unobstructed view – intuitive one-handed operation via joystick
• Continuous control
• Powerful: obstacles up to 4 cm are no obstacle, gradeability up to 28%
• Maximum contact pressure through electrically controlled adjustment of the friction rollers

Safety: maximum ground clearance thanks to the flat design

• Plug & play installation for AL-KO chassis from model year 2010 with “M” Mammut embossing
• The chassis is perfectly protected thanks to compact computer-optimised stabiliser bars
• Robust solid metal housing with metal gears
• Drive completely sealed, splash-proof (IP65)
• Registration required

With the AL-KO AMS MAMMUT manoeuvring system, you can park your caravan with millimetre precision – on any kind of surface or on steep slopes. With only your thumb and without outside help.

AL-KO chassis with the “M” embossing on the longitudinal frame (single axle from model year 2010 / tandem axle from model year 2015) have mounting holes for the MAMMUT system as standard. The stabiliser bar required for stability does not take up any space under the chassis, for maximum ground clearance.

Robust aluminium drives with double-bearing drive rollers. Perfect protection against damage and moisture (IP65).
