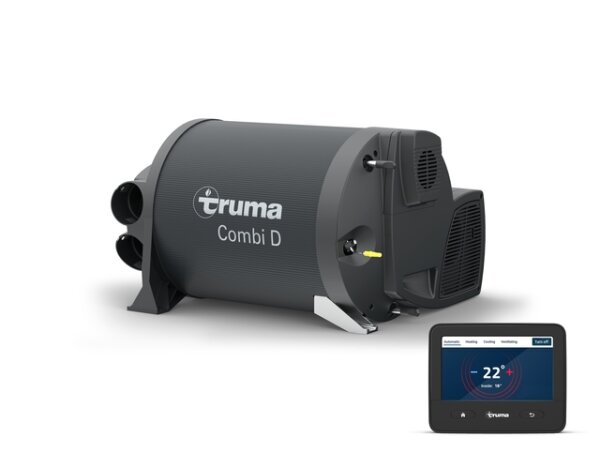

Heating system truma Combi D 6 with iNet X Panel

Description

Heating and hot water in one: the Truma Combi heaters combine two functions in one device. They heat the living area and heat water in the integrated stainless steel tank. Depending on the model, the Combi heaters can be used in gas, electric, diesel or mixed operation mode. Innovations for the next-generation Combi D

• Weight saving of 3 kg for Combi D and 3.4 kg for Combi D (E) compared to the predecessor models
• Self-sufficient for longer: very low battery power consumption
• More economical: less diesel consumption thanks to more efficient combustion
• Easier to service and maintain: longer service life thanks to more efficient combustion control
• Automatic altitude adjustment: the integrated altitude sensor automatically ensures an optimal combustion process at altitudes of up to 3,000 m
• Uniform: the wall-mounted flue is the same for both Combi variants

• Number of combustion stages: 4 (Combi D 4), 6 (Combi D 6)
• Heat output: 4,000 W (Combi D 4), 6,000 W (Combi D 6)
• Water content: 10 l
• Nominal heat output mixed operation: max. 3,900 W (Combi D 4), max. 6,900 W (Combi D 6)
• Nominal heat output in electric mode 900 W & 1,800 W
• Water heated from approx. 15°C to approx. 60°C: approx. 24 min.
• Power consumption 12 V: heating and hot water: 0.4 - 8.1 A, hot water: 0.5 A
• Power consumption 230 V: 3.9 - 7.8 A

Contents:

Combi D (E) heater with room temperature sensor, Truma iNet X Panel, 6 m control panel cable, fuel line, dosing pump, standard tank connection set and mounting parts (without exhaust duct or water connection set)

Note: Either a water set FC TB (Art. No. 9927516) or a water set FC JG (Art. No. 9956895) must be ordered in addition.
