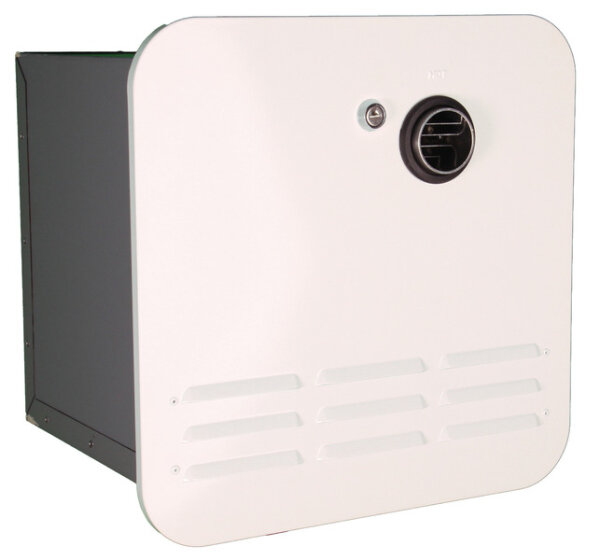

Gas instantaneous water heater IWH-1.5 E

Description

Hot water is available in the caravan and motor home at any time and without preheating immediately in "unlimited" quantity. A comfort that you are used to at home, can also be enjoyed on vacation. No matter how long you shower, no matter how many people - there is always enough hot water.Technical data:Approved in the following countries: AT, BE, BG, CY, CZ, DE, DK, EE, ES, FI, FR, GB, GR, HU, HR, IE, IS, IT, LT, LU, LV, MT, NL, NO, PL, PT, RO, SE, SI, SKGas type Butane G30/ Propane G31: 30 mbarHeater classification: Type C12 (Fanned)Diameter of the exhaust pipe: 45 mmStandard length of the exhaust pipe : < 15 mm (measured from the surface of the service door)Nominal maximum input power: 10 kWMaximum gas consumption: 765 g/hMaximum gas consumption: 36 Mj/hMinimum input power: 5 kWPressure at test port: 22 mbarEfficiency: > 84 %Maximum water pressure: 5 barMinimum water pressure: 0.5 barMinimum start flow: 1.5 l/minSelectable water temperature: 35 - 60 °C (stepless)Temperature increase at 3.3 l/m: 37.7 °CRequirement for a stable minimum at: Cold water temperature maximum 15 °CWater temperature of 35.5 °C: 3.3 l/minNominal supply voltage VDC: 12Voltage range VDC: 10.5 - 15Maximum current consumption: 0.44 AStorage temperature (dry): 0 - 50 °C

• Highly efficient copper heat exchanger with up to 92 % efficiency
• Burner capacity 10 KW
• Up to 60% less gas consumption than units with storage tank - constant reheating not necessary (absolute night sleep)
• Stepless selection of water temperature (35 to 60°C) on the control panel
• No corrosion, bacteria and legionella problems
• Low weight, as there is no tank
