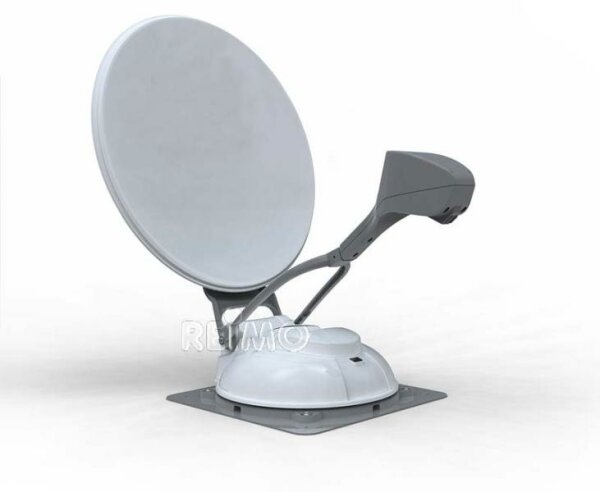

Automatic satellite system Flat-Sat 85 with Astra

Description

Use of state-of-the-art, future-proof hardware and software technologies, positioner with DVB-S2 tuner (MPEG4). Simple operation: TV reception at the touch of a button. Equipped with modern, intelligent and proven automatic positioning and search system for best possible signal quality. The maximum search time is 30 seconds (± 5 seconds to change satellite). Built-in, intelligent GPS module, calculates the tilt angle of your motorhome. It'll speed up the satellite position search a lot. Acoustic signal, warns at vehicle start when antenna is open. (Plus version only)SKEW adjusts the LNB displacement by the earth curvature. This ensures optimal satellite reception in the southwest and southeast of Europe. (SKEW models only) Technical features: Equipped with a DVB-S2 tuner. APM (Automatic Position Memory) technology stores the last satellite position to speed up the search. Extremely robust, powder-coated aluminium construction. High stability for exact position maintenance, even in windy conditions. Self-lubricating bearings for silent and precise operation. High precision steel and bronze gears for long life. Minimum height of 170/185mm 65/85 and only 10.5/10.9 kg light. Aluminium mounting plate for easy and safe mounting on the motorhome. intelligent software warns, manages and protects the system against:- overvoltage in case of impacts, obstacles, branches etc.- interrupted or damaged SAT cable.- insufficient battery voltage. Technical data: 12 volts/30 watts (max. 50 watts during retraction and extension), -15 to +50°C. CI slot (Common Interface), OSD.

• Extremely high quality and future security
• Elegant design, very light and compact
• DVB-S2 Positioner / integrated GPS
• Positioner with DVB-S2 Tuner/MPEG-4 (MPEG-4=future standard)
• Simple software update at the positioner
• Receiver independent (not enclosed)
• Low energy consumption
