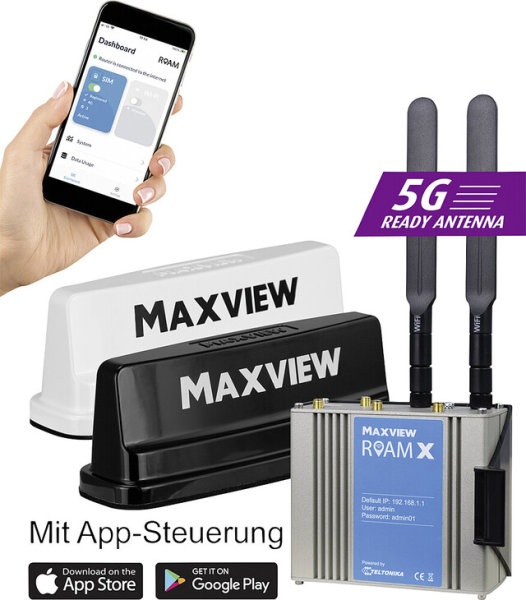

Antenna und router MAXVIEW Roam Campervan X Colour anthracite

Description

The high-performance router (4G) and the powerful 5G LTE antenna are the perfect combination for the discerning camper who wants to use their motorhome or caravan as a home office. The LTE signals are received via the external antenna, while the WiFi signals are received via the rod antennas mounted on the router. The router has been automotive-tested and is therefore perfect for installation in a vehicle. The router can be configured quickly and easily using the free ROAM X app for Android and iOS operating systems.

Standard installation uses a cable entry through the roof directly under the antenna. The antenna is attached to the roof from the inside with a plastic hollow screw, through which the cables also go. The self-adhesive foam pad seals the antenna. A 25 mm hole is required for the plastic hollow screw. The antenna can be attached to roofs with thicknesses of 10 - 50 mm.

Features of the router:

• Mobile: 4G (LTE) – CAT6 DL up to 300 Mbps, Ul up to 50 Mbps
• Ethernet: 3 x LAN ports 10/100/1000 Mbps, 1 x WAN port
• WiFi: 2.4 GHz and 5 GHz 802.11 ac (WiFi 5)
• Power supply: 9 - 50 V 4-pin connector
• Current consumption: approx. 400 mA
• Connections: 4-pin power connector, 4 x Ethernet, 2 x SMA for LTE, 2 x WiFi RP-SMA, 1 x SMA for GNSS, 1 x RP-SMA for Bluetooth. USB port
• SIM card: 2 x SIM card slots for standard SIM cards
• Status LEDs: 1 x power, 3 x mobile connection type (2G/3G/4G), 5 x signal strength, 2 x WiFi band (2.4/5 GHz), 8 x Ethernet status, 4 x WAN type LEDs
• Operating temperature: -40°C to 75°C
• Housing: aluminium
• Weight: 470 g
• Dimensions: H: 115 x W: 95 x D: 44 mm

Antenna technical data:

• Type: MIMO omnidirectional antenna
• Frequency: 698 MHz to 6,000 MHz covers the frequencies of 4G & 5G
• Gain: 5.9 dBi - 8.8 dBi
• Cable length: 0.8 m
• Material: Aluminium base plate, UV-stable ASA cover
• Dimensions: h: 65 mm b: 180 mm d: 60 mm
• Weight: 500 g

Contents:
Includes antenna (5G ready), high-performance router, wall bracket for router, 12 V connection cable, 2x WiFi antenna
